Earthing Your 19-Inch Cabinets Safely in the UK

Earthing Your 19-Inch Cabinets Safely in the UK

In the world of IT, audio-visual, and industrial installations, 19-inch cabinets are the backbone for housing crucial equipment. Ensuring these cabinets are correctly earthed (grounded) is not just best practice – it’s a fundamental safety requirement in the UK, protecting both your valuable equipment and, most importantly, personnel.

This blog post will guide you through the essential steps for safely earthing your 19-inch cabinets in accordance with UK regulations. Remember, if you are unsure or uncomfortable with any aspect of electrical work, always consult a qualified electrician.

Why is Earthing Crucial?

Earthing provides a safe path for fault currents to flow to earth in the event of an electrical fault. Without proper earthing, these fault currents could:

  • Cause electric shock: Posing a serious risk to anyone touching the cabinet or connected equipment.
  • Damage equipment: Leading to costly repairs or replacements.
  • Create a fire hazard: Due to overheating components.
  • Disrupt the operation of sensitive electronics: Due to electromagnetic interference (EMI).

UK Regulations and Standards

Earthing practices in the UK are governed by the IET Wiring Regulations (BS 7671). While this post provides general guidance, always refer to the latest edition of BS 7671 and any specific site requirements. Key principles include:

  • Continuity of Earth: All exposed conductive parts of the cabinet must be reliably connected to the protective earth conductor.
  • Adequate Earth Conductor Size: The earth conductor must be of sufficient cross-sectional area to safely carry potential fault currents.
  • Secure Connections: All connections must be mechanically sound and electrically continuous.

Steps to Earth Your 19-Inch Cabinet:

Here’s a step-by-step guide to earthing your 19-inch cabinet in the UK:

1. Identify the Earthing Point on the Cabinet:

Most 19-inch cabinets will have a dedicated earthing point. This is typically:

  • A threaded stud or bolt: Often located on the frame, usually at the rear or base of the cabinet.
  • A pre-drilled hole with a grounding symbol: Indicating the designated earthing location.

2. Gather the Necessary Materials:

You will need the following:

  • Earth Cable/Wire: Choose a cable of appropriate size (refer to BS 7671 or consult an electrician). Green and yellow striped cable is the standard colour for earth conductors in the UK.
  • Earth Tags/Lugs: These are crimp or bolt-on connectors that will attach the earth cable to the cabinet’s earthing point and the building’s earth terminal. Ensure the tag size matches the cable and the cabinet’s stud/bolt.
  • Crimping Tool (if using crimp lugs): A suitable tool for securely attaching crimp lugs to the earth cable.
  • Spanner or Socket Set: To tighten the nut on the cabinet’s earthing stud/bolt.
  • Screwdriver: If the earthing point involves a screw terminal.
  • Multimeter with Continuity Test Function: To verify the earth continuity after installation.
  • Wire Strippers: To remove the insulation from the earth cable.
  • Cable Ties or Clips: To neatly route and secure the earth cable.

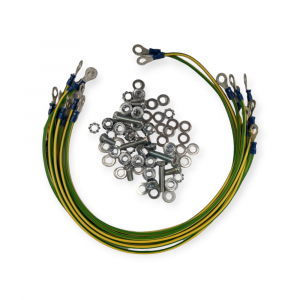

Universal Earthing Bonding Kits for Racks

3. Connect the Earth Cable to the Cabinet:

  • Prepare the cable: Strip a sufficient length of insulation from both ends of the earth cable.
  • Attach the earth tag to one end of the cable:
    • Crimp lug: Crimp the lug securely onto the stripped end of the cable using the crimping tool.
    • Bolt-on lug: Securely bolt the lug to the stripped end of the cable.
  • Connect the earth tag to the cabinet’s earthing point:
    • Threaded stud/bolt: Place the earth tag over the stud/bolt and secure it tightly with a nut. Ensure good metal-to-metal contact. You may want to use a star washer to improve the connection.
    • Pre-drilled hole: Use a suitable bolt, washer, and nut to securely attach the earth tag to the frame.
    • Screw terminal: Loosen the screw, insert the stripped end of the cable (or a suitable ferrule), and tighten the screw firmly.

4. Connect the Other End of the Earth Cable to the Building’s Earth Terminal:

  • Identify the main earth terminal (MET): This is a central point where all the protective earth conductors in the installation are connected. It’s usually located near the main distribution board (consumer unit).
  • Route the earth cable safely: Ensure the cable is routed away from sharp edges, heat sources, and areas where it could be easily damaged. Use cable ties or clips to secure it neatly.
  • Connect the other end of the earth cable to the MET: Use an appropriate earth tag and secure it to a spare terminal on the MET. Ensure the connection is tight and secure.

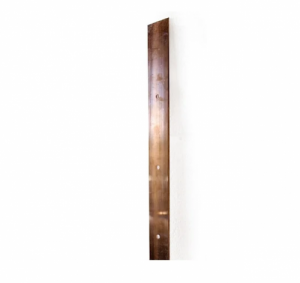

Prism Earth Bars for 19-inch Racks

5. Verify Earth Continuity:

This is a crucial step to ensure the earthing is effective. Use a multimeter with a continuity test function:

  • Set the multimeter to the continuity setting (often indicated by a sound wave symbol).
  • Place one probe on the earthing point of the cabinet.
  • Place the other probe on the building’s main earth terminal (or the point where you connected the earth cable).
  • The multimeter should indicate continuity (usually a beep or a reading close to zero ohms). This confirms a low-resistance path for fault currents.

Important Considerations:

  • Equipment within the cabinet: Each piece of equipment installed within the cabinet should also have its own earth connection, either through its power cord (if it has a three-pin plug) or via a separate earth lead connected to the cabinet’s frame (if it has a chassis earth point).
  • Regular Inspections: Regularly inspect the earth connections for any signs of corrosion, looseness, or damage.
  • Modifications: If you make any modifications to the cabinet or the equipment within it, always re-verify the earth continuity.
  • Competent Person: While this guide provides general information, it’s highly recommended that a competent person (a qualified electrician) carries out or verifies the earthing installation, especially in commercial or industrial settings.

Conclusion:

Properly earthing your 19-inch cabinets in the UK is a vital safety measure. By following these steps and adhering to the IET Wiring Regulations, you can ensure the safety of your equipment and personnel. Remember, when in doubt, always consult a qualified electrician. Stay safe and keep your ground control secure!
